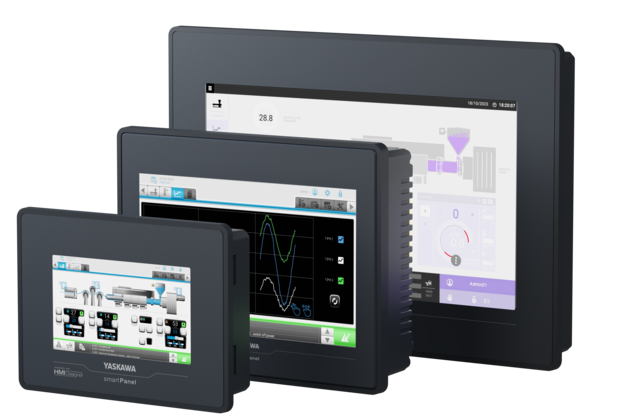

smartPanels

Operating & Monitoring

smartPanels are optimally designed for medium-sized applications. They stand for high usability and connectivity. Equipped with Movicon 11 Standard, the user is practically unrestricted in terms of tags, screens, recipes, alarms, etc.

Characteristics

  • Display size: 4,3”, 7”, 10”
  • 65k colors
  • Processor: ARM Cortex-A8 1000 MHz
  • Interfaces: USB-A, Ethernet, RS232/422/485
  • Memory: 512MB RAM, 4GB Flash (2 GB User memory)

Visualization system Movicon

  • Vector graphics
  • Comprehensive symbols library
  • VBA support
  • Extensive I/O driver library (import of variables from the PLC possible)
  • Powerful alarm and recipe management
  • Data acquisition and handling
  • Trend curves and archiving of process data as historical data
  • Extensive driver library
  • Movicon project scalability from HMI to Scada platform
  • Multilingual support
  • User management
  • Remote management for remote maintenance
  • Remote access via standard VNC client
  • Integrated Ethernet TCP/IP networking
  • Integrated AWL logic (STEP5/STEP7)
  • 3rd Party PLC support
